Leviton 6220 X10 controller schmatic

Anyone know where I can find this. It is an older version of the X10 maxi-controller. Same as Sears Home Control System model X 10-014301. There is a large capacitor I need to identify for replacement.

Bob

Reply to
Bob F
Loading thread data ...

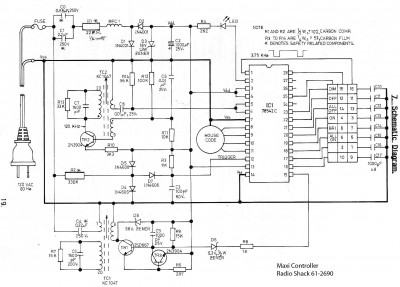

There's a schematic of RadioShack maxi-controller at...

formatting link
Whether it's the same as yours, I haven't a clue - but X-10 didn't revise designs very often.

"Bob F" wrote:

Reply to
Dave Houston
