CM11A EEPROM longevity question.

I've read that the number of times an EEPROM can be
rewritten before it fails can be fairly low (~1000)
for some older EEPROMs.
Can anyone familiar with the EEPROM chip in the
X-10 CM11A tell me if this is likely to be the case
with the CM11A?
Thanks for your help.
Regards,
Charles Sullivan
Reply to
Charles Sullivan
Loading thread data ...

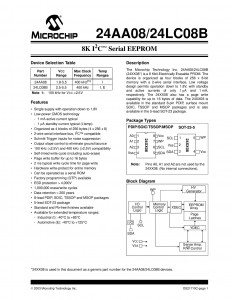

Mine all use a Microchip 24LC08B. The datasheet 24LC08B says it's good for 1,000,000 erase/write cycles. You should be able to rewite a memory location 10,000 times a day for 100 years.
formatting link
Charles Sullivan wrote:
Reply to
Dave Houston
Thanks Dave - much appreciated. (I have a user who is loading schedules twice a day and I wondered whether he might expect a CM11A failure after a couple of years for that reason.)
Regards, Charles Sullivan
Reply to
Charles Sullivan
Dave, your math is a bit off.... I calculated 27.4 times per day for 100 years. But the end result is the same... don't worry about wearing out the chip.
Reply to
RoughRider
Yeah. I realized my math was off right after sending it but but figured it didn't matter much.
"RoughRider" wrote:
Reply to
Dave Houston
