I am trying to set up a brand new Ubiquiti NanoBeam M2 radio to
act as a wifi extender to extend my Internet connection a few
hundred feet outside to where the kids play at the pool.

I already had the laptop wlan0 port connected to the Internet via
the home broadband router SSID, and I just want the laptop eth0
port to be rebroadcasting that Internet connection a few hundred
feet away (via the new nanobeam radio).

The laptop & radio physical connections are set up as shown:
http://i.imgur.com/hBndic1.jpg

Where the laptop is already on the Internet via its wireless port
wlan0 paired over the air to the home wifi broadband router's SSID
and the nanobeam radio is connected to the laptop ethernet port
eth0 via a cat5 cable (and POE for electrical power to the radio).

I set the laptop ports to be on the same network as the router:
$ sudo ifconfig eth0 192.168.1.98
$ sudo ifconfig wlan0 192.168.1.99

Where the home broadband router is at IP address 192.168.1.1:
$ route -n
... stuff ...
192.168.1.0 0.0.0.0 255.255.255.0 U 0 0 0 eth0
192.168.1.0 0.0.0.0 255.255.255.0 U 9 0 0 wlan0

I set the nanobeam to the United States frequencies as shown below:
http://i.imgur.com/CumFEI1.jpg

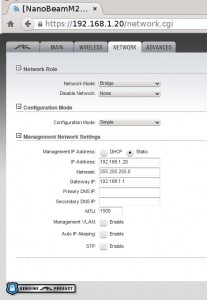

I left the new nanobeam at the default settings, so I logged into
that nanbeam at IP address 192.168.1.20 using ubnt/ubnt as shown:
http://i.imgur.com/LwQN9it.jpg

But, here is where I am stuck.

I'm confused what to do next in order to then go a few hundred feet
away with a DIFFERENT laptop (or cellphone), and pick up the resulting
signal being broadcast from the nanobeam.

Anyone extended their WiFi like this before who can get me over the
next hurdle?

I do not know how to set up the nanobeam settings to extend the
wifi. Any help or advice is appreciated, as this is my first time.

Re: Need help extending home wifi using Ubiquiti nanobeam M2 radio

Quoted text here. Click to load it

I think you are really going down the wrong path. The M2 should be configured as
an AP and plugged into an open port your existing router. You shouldn't be
messing with your laptop at all.

This of course assumes that you aren't talking about using the M2 as a true
repeater, which I don't think it can do.

Re: Need help extending home wifi using Ubiquiti nanobeam M2 radio
On 6/5/2015 5:32 PM, Arthur Conan Doyle wrote:
Quoted text here. Click to load it
If you have access to a wired port on the router feeding one of the
apartments, that is where the Nanobeam needs to be located.  Plug it's
WAN port into an Ethernet port of the main router.  You may need to set
the Nanobeam into the "bridge" mode so that it just becomes a "dumb"
repeater.  That way it just echo's what it sees on it's WAN port out
it's wireless port.  Still need to setup it's radio for security and
such but that should be something you can do.

To me it sounds like you are presently trying to use your laptop as a
router, taking it's wireless data and trying to echo it out it's
Ethernet port.  Not impossible but much more labor intensive and not
something I would consider on my own.

Hopefully someone here that uses one of these Nanobeams and can give you
more specific info on what to do next.

Re: Need help extending home wifi using Ubiquiti nanobeam M2 radio
On Fri, 5 Jun 2015 21:09:38 +0000 (UTC), Werner Obermeier

Quoted text here. Click to load it

  The recv end is where you set up yet another, regular wifi router fed
by the nano Xceiver's output.  This dish doesn't beam to your devices,
it beams from dish to dish.  You then feed the dish into a "local wifi
router at the 300 feet away side for a "local wifi domain" at that
locale.
