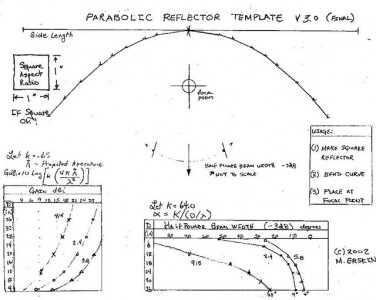

Here is the template for the antenna I will construct from this template:
formatting link
Here are some photo examples:
formatting link
formatting link
I will do much better with the construction-more precise in curve and focal point than the examples shown. Can't remember the dBi, but author claims this is a high gain antenna when made correctly.
Antenna will be used indoors only from an apartment, pointed at the window:
a) As far as reception power goes, will it improve or worsen reception to make the reflector larger beyond the dimensions of the the whip antenna? I was thinking of doubling the size in both dimensions which will make it significantly larger than the antenna. Instead of 1' by 1' approx 2' by 2'. Directions call for it to be equally tall as it is wide, do they have that right?
b) what else can be done simply to improve the receive portion of the signal in construction of this antenna.
c) I will use a 10 foot usb extension to my radio, does that cut the power of the tranceiver at all? Does the placement of the usb extension wire factor into receive sensitivity?
d) the antenna screws into the top of the little usb radio. The usb radio is about 2-3 inches in height itself. Does the radio body take part in any signal pickup or interference thereof?
e) where exactly is the pickup inside most of these antennas as shown in the pictures?
But now I prefer the Windsurfer from the same site.
formatting link
formatting link
on photo paper for thick stock, with aluminum foil glued to the sail, provides a substantial boost in signal. Leave the "tabs" longer than indicated on the drawing, for easier assembly.
No. Primarily because they have been from different eras, and I've used different tools to measure the gain, as well as different routers and laptops.
I have used three of the reflector patterns from freeantenas.com . The windsurfer is the prettiest of the them, and shows good gain in Netstumbler, as well as a noticeable improvement in drop out rate on some inferior WiFi clients.
My current laptop is so much better than the old equipment that I probably don't need the reflector for it.
NetStumbler, if I recall correctly, has some maximums, so this graph probably shows a max verses the non-reflector, and not the true difference.
Not really. If you double the aperture size of the antenna, you'll get a theoretical increase in gain of 3dB. However, that doesn't include reflector efficiency, cancellation due to multiple paths (more on this later), feed overspray, etc. Also, antennas of this type tend to have different gains in TX as in RX (due to overspray). To get them equal, matching the feed pattern to the dish f/D (focal length to diameter) ratio is important. With an uncontrolled feed (i.e. omni rubber ducky antenna), much of the RF radiated by the feed does NOT hit the dish, and therefore is not sent out the window in the desired direction. If I arbitrarily assume that half the radiation from the omni does not hit the dish, the TX gain is automatically 3dB less in TX than in RX, where all the RF that hits the dish ends up somewhere on the omni antenna.
Start here:
and especially read the section on feed design and overspray (spillover) and matching the feed to the dish.
There's no technical requirement that the antenna be symmetrical. It's just easier to calculate that way. The gain is mostly determined by the frontal area (aperture size), which can be rather asymmetrical. However, make an effort to make the antenna longer than the omni antenna feed or RF off the end of the omni will miss the reflector.
Simplify it. There's really no need for a parabola. A flat plate reflector or two flat plates forming a corner reflector will work almost as well. See:
This is a comparison of a parabolic dish, as found on a Hawking something client radio, and an equivalent sized flat plate reflector.
7.7 for the dish, and 8.3 for the flat plate. A corner reflector will do better, but I'm too lazy to model one.
What you must realize is that as antennas get bigger, and gains increase, the dimensions and limitations become more critical. The reason the aforementioned antennas, and most of the salad bowl and kitchen accessories reflectors work is that all of these offer an improvement over a simple rubber ducky antenna at low gains. However, to use the same techniques for higher gain antennas just isn't going to work. A slight construction or dimension error, and it just won't work as well as expected.
Nope. The xmit power at the end of a USB cable will be exactly the same as the xmit power when the USB dongle is plugged directly into the computah. The only loss is in the +5V DC power to the device, which is adequate for most such dongles. On the other foot, 10ft of coaxial cable has a rather high loss at 2.4GHz and should be avoided if possible.
Nothing you do to the antenna affects the "receive sensitivity". That's measured at the receiver input, without an antenna.
The gain of the antenna is affected by the placement of the USB cable. It's best to run it through the center of the dish, where it doesn't block the signal in any way.
A little. The radio itself is not very well shielded and can radiate quite a bit of RF without any antenna. Most of the RF comes out of your unspecified model USB radio, but there is a little leakage from the case. If you mount the USB radio in the aperture of the dish or reflector, it's going to block some of the signal. Same with the cable. Look at it from the optical point of view and pretend your working with light instead of RF.
I can't tell because you haven't bothered to supply what device you're using. Usually, it's a tiny ceramic antenna at the very end of the USB dongle, which will form a rough hemispherical pattern.
Now, I have a question. A few months ago, you posted this photo:
and engaged in an irritating and pointless dialog over its purpose, despite several people having successfully guessed the manufacturer and its function. Wanna explain what that was all about?
