How to best choke a receiver feedline

Have a question or want to start a discussion? Post it! No Registration Necessary.  Now with pictures!

Threaded View

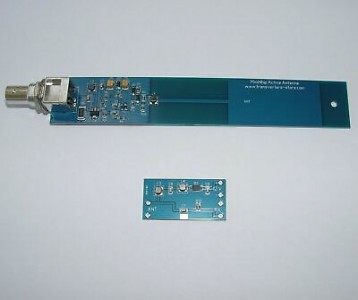

I'm installing an active antenna.
Quoted text here. Click to load it

  The seller discusses choking the feedline to prevent it
from adding signal.
  How do I best accomplish this.
I don't have any beads, I do have loads if ferrite potcores and some
toroids.
  The antenna will be up 24ft, last 4 feet is pvc, the first 20 ft is
steel.
Will it help to run the coax inside the mast?
About 75 ft of the coax is run underground and then about 7 feet up to
the radio.
  I plan to choke it at both ends.

                             Mikek

Re: How to best choke a receiver feedline

Quoted text here. Click to load it


This is no antenna, it is a joke, a bad joke.

w.

Re: How to best choke a receiver feedline
On 11/16/2017 1:36 AM, Helmut Wabnig wrote:
Quoted text here. Click to load it

  Hmm, everyone has an opinion, is yours based on testing one?

Anyway, I found my problem was not the feedline. I started turning off
breakers and one of them shut down the buzz. Two sources of buzz were on
that breaker and outdoor light with IR sensor and my garage door opener.
I had a very minor buzz left, audible but didn't show up on the S meter.
That was cleared with an isolation transformer and lifting the ground wire.
  Now I can receive 200kHz beacons, AMBCB, 80 meters, 40 meters 10
meters and 28 MHz CBer's. So it works, do I have anything to compare it
to, not yet, but I'll be putting up a long wire soon.

                                            Mikek

   Btw, the antenna is quiet, without any chokes. I don't know if
running the coax inside the metal mast helped, the mostly underground
feed line probably did. Oh, I just realized I do have a choke at the
bottom of the mast, just before the feed line goes into the ground. I'll
remove that tomorrow and see if it's needed.

Re: How to best choke a receiver feedline
On 16/11/2017 07:36, Helmut Wabnig wrote:
Quoted text here. Click to load it

It is a perfectly acceptable active antenna, and works as well as any
other short active antenna.

The comments about choking the feed-line are quite reasonable, it you
have an antenna high up in the clear you don't want signals,
particularly local noise, picked up on the feeder being fed to the receiver.

Jeff

Re: How to best choke a receiver feedline
Jeff wrote on 11/16/2017 5:16 AM:
Quoted text here. Click to load it

An acceptable choke can be a coil made of the feedline coax, correct?  My
understanding is you have to match any magnetic material to the frequency in
use while an air core doesn't have that complication.

--

Rick C

Viewed the eclipse at Wintercrest Farms,
on the centerline of totality since 1998

Re: How to best choke a receiver feedline

Quoted text here. Click to load it


Depends on the frequency in question.

Quoted text here. Click to load it

True, but  at lower frequencies it is not possible to get enough
inductance without a magnetic core of some sore in a reasonable size.

Jef

Re: How to best choke a receiver feedline
On 11/16/2017 1:36 AM, Helmut Wabnig wrote:
Quoted text here. Click to load it
  Helmut,
I got my long wire up. 16ft high sloping up to 50ft high.
It's 132 ft long plus another 16ft down and 4 more ft into the house.
I tested from 211kHz to 1600kHz because that's what the antenna switch
on my the radio allows.*
My active antenna is better at 211kHz and much less noisy, at 325KkHz
the signal strength is about equal, but still the active antenna has
less noise.
In the lower half of the AM band the long wire is equal or 1 S unit
higher in signal strength.
In the upper half of the AM band it is about 2 S units higher signal
strength.
The long wire is always noisier. The Active antenna is preferable.
In fact the active antenna has less noise on every band where I tested,
5MHz, 10MHz and 15MHz.
I still want to hook up an external antenna switch and test it at night,

but right now, the active antenna is clearly the winner.

I'm not in a particularly noisy area. In the middle of the AM band,
1025kHz (mid afternoon),
I have 1 S unit on the active antenna and 3.5 S units on the Long wire.


* I have an Icom R71a, the radio has two antenna inputs, a UHF connector
input and a long wire input.
The antenna input is manually switchable up to 1600kHz and then radio
takes over and only the UHF antenna connector is used.
Hmm, for some reason my unit switches at 1598Khz.

Mikek

Re: How to best choke a receiver feedline
On Fri, 23 Feb 2018 15:34:17 -0600, in rec.radio.amateur.antenna you
wrote:

Quoted text here. Click to load it


I wonder what exactly you are doing.
Where is the active antenna placed?
I would put it outside, a few meters away from the house
in a free space and use shielded cable for connections.

Your long wire antenna is end fed, that means, it is unsymmetric,
if I understand you correctly. And the wire goes unshielded
into your house. This is the second worst scenario one could imagine,
the worst being no antenna at all. End fed antennas should have a 1:9
balun at the end and connected via coax.

There is always room for improvement,
the best of all antennas does not exist :-)

OE8UWW

Re: How to best choke a receiver feedline
On 2/24/2018 3:22 AM, Helmut Wabnig wrote:
Quoted text here. Click to load it
  I put the active antenna about 30ft from the house, up 24ft.
The coax is buried in PVC from the antenna base to the house.
   The last 4ft at the top of the metal mast is pvc pipe, and the coax
runs inside the steel mast.


Quoted text here. Click to load it

   That's a good point, although, my radio is made to accept a long wire
antenna.
  I do think the change is worth doing, that will allow me to use a coax
switch to make it easier to compare antennas on all bands. Rather than
just AM, that the antenna switch on the radio allows.
  I did some night time testing last night and found the long wire has
directional characteristics that help eliminate co-channel interference.
     The active, being omni picks up stations from all directions,
making it less desirable at night when the atmosphere allows more
signals to arrive.

Quoted text here. Click to load it

  After I get the 1:9 balun put up, I have an antenna phasing unit that
I'll be able to experiment with and help eliminate co-channel interference.

Quoted text here. Click to load it

Nope that's right. At one time I had a rotatable Flag with a variable
termination, that was quiet and directional even on the AM band.
                                                 Mikek

Quoted text here. Click to load it


Re: How to best choke a receiver feedline
On 2/24/2018 7:21 AM, amdx wrote:
Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it

Quoted text here. Click to load it
   I'll need to put a little more thought into the 1:9 balun issue.
  One reason I wanted a long wire is so I could experiment with
Crystal Radio. I'll need to figure out a way to switch from high
impedance to low impedance balun fed.
                           Mikek
